New design TUV approved 100w high quality led high bay light

FOB Reference Price:Get Latest Price
US $80-90 / Piece | 5 Piece/Pieces (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
High Bay Lights
LED Light Source:
led
Warranty(Years):
5
Input Voltage(V):
AC85-265V / 277V /
Lamp Power(W):
100
Lamp Luminous Flux(lm):
12000
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra>):
80
Color Temperature(CCT):
2700-7000K
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lux
Model Number:
LX-CGK -100W
Power:
100W
LIGHT SOURCE:
led
Protected Grade Luminance:
IP65
Lumen:
100-110LM/W
Driver brand name:
Mean well
CRI:
80
Input Voltage:
AC85-265V / 277V /
Item:
New design TUV approved 100w high quality led high bay light
Housing:
Slivey
IK:
IK10
Packaging & Delivery
Packaging Details
package size : 300*300*350/1 Pcs
Delivery Time
5 days for sample ,large order 10-15days

New design TUV approved 100w high quality led high bay light



 Induction

1.Product Name:  New design TUV approved 100w high quality led high bay light

2.Adopt Super Brightness Multi-Chip LED Lighting Source, encapsulation by ourselves, Long lifespan, Energy saving, Environment friendly, High efficiency, No strobe, No ghosting, No UV, IR.

3.LUX series LED high bay light integrate LED lighting source and the cover of the light, the advantages are no needing extra cover, the volume is small and the weight of the body is light. Which make the led light perfect.

4.The Lighting source of the led high bay is using super bright big size LED chip, It’ s single led chip with top quality which lumen is up to 120lm/W, Using high efficiency PC lens and sand blast oxidation light cover which can solve the problems such as light loss and color shading. It can assure the uniformity of flux and color.

5.Using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 °C, which is effective controlled the light degradation, the lifespan for the led light is over 30000 hours.

6.High efficiency intelligence Driver and very professional design which makes the surface temperature of the light body less than 60°C. The life span for the driver is over 30000 hours.

7.The range for the input voltage is wide. Which make the led high bay are available for the global. Unique protection circuit and exact constant current system assure the abilities such as anti-interference and stability of the light.

8.Available for solar DC10V-28V to realize the secondary energy saving system.



Technical Parameter

ModelPowerLEDVoltageLumen
LX-CGK80W80W AC85-265V/AC>120lm/w
LX-CGK100W100W AC85-265V/AC>120lm/w
LX-CGK120W120W AC85-265V/AC>120lm/w
LX-CGK150W150W AC85-265V/AC>120lm/w
LX-CGK200W200W AC85-265V/AC>120lm/w
LX-CGK300W300W AC85-265V/AC>120lm/w



 Details

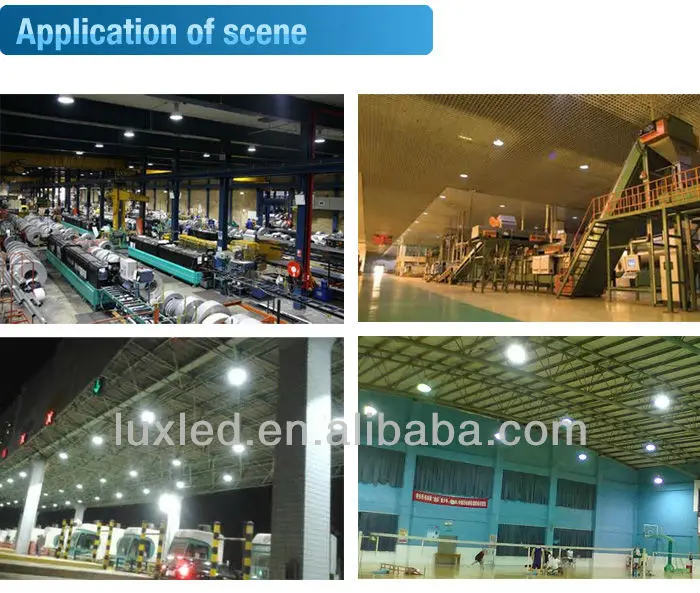

  Application:



New design TUV approved 100w high quality led high bay light  is available for Building,factory,storage room,public ,parking lot ,exhibition building,
domestic block,gymnasium,gas station,Square,advertise,Lawn,Super market Wharf ,
Garden and other lighting places.












Ageing picture:











ABOUT US
Shenzhen LUX Lighting CO.,LTD, has more than 10 years experience in led lighting. With 100+ workers, focus on out door lighting, main products are: led flood light, led high bay light, led street light.
