Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: Bridgelux
  • Input Voltage(V): AC100-240V/DC12-24V
  • Lamp Power(W): 120
  • Lamp Luminous Flux(lm): 12000
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 75
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -30 - +60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CCC, CE, C-tick, EMC, FDA, FCC, GS, GOST, LVD, PSE, RoHS, REACH, SAA, VDE, CE/ROHS
  • Warranty(Year): 3
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LUX
  • Model Number: LX-SL800-120W
  • Item: Super brightness IP65 High Quality high power led street light price
  • Light source: 2pcs*60w Bridgelux45mil
  • Power: 120
  • PF: 0.95
  • Driver: Meanwell
  • N.W./G.W.: 8.5/10kg
  • Beam angle: 130/140degree
  • Package Size: 86*33*16cm/pcs

Packaging & Delivery

Packaging Details: Packing:Carton with EPE FOAM
Delivery Detail: 7-10days

Specifications

IP65 High Quality high power led street light price
1.COB 30-210w
2.CE ROHS
3.3/5year warranty
4.Factory price

Super brightness IP65 High Quality high power led street light price



Details:

  • Product Name : LED street light(80w/100w/120w/140W)
  • ProductNo : LX-SL800 Series
  • Input Voltage : AC 85-265V, 277V/305V 47-63Hz DC10-28v
  • Color : CW;PW;WW
  • LED Efficiency : >100 lm/w
  • Color Rendering Index (CRI) : CW/PW: Ra≥80;WW :Ra≥70
  • Working Temperature : -40 ºC ~ 50 ºC
  • Lifespan for LED lighting source : > 50,000 hours
  • Certification : CE&RoHS&FCC&SGS&KEMA
  • Manufacturer : Shenzhen Lux lighting Co.,Ltd.
Shenzhen Lux Lighting Co.,Ltd. LX-SL800 ,80-140W LED Street Light

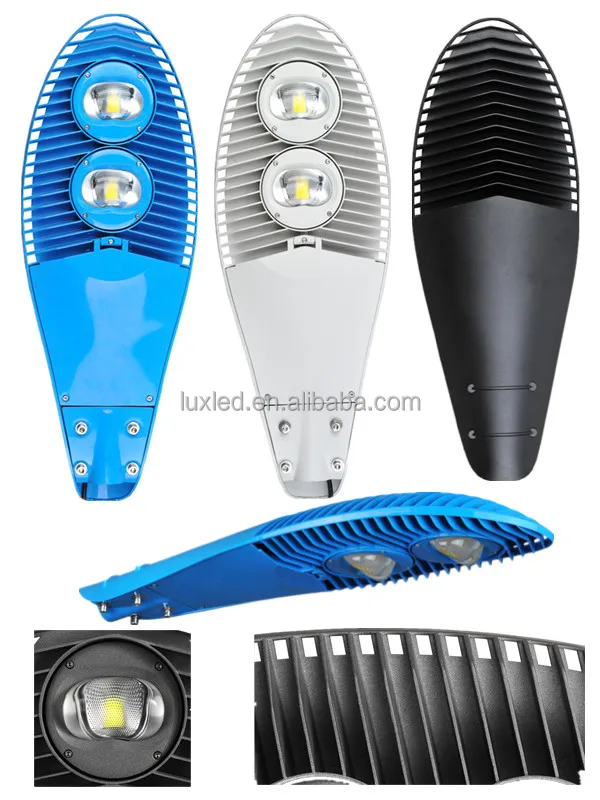

Dolphin series COB led street light picture:

(1) 1pcs COB Chip:30w-80W led street light

(2) 2pcs COB Chip:80w-140W led street light
(3) 3pcs COB Chip:150w-210W led street light

LED strret light details picture :

Parameters:

Related color temperature(CCT):2300-7000K

Other available Color:Red/green/bule

Color Rendering Index (CRI): CW/PW: Ra≥80; WW :Ra≥70

Uniformity of illuminance : 0.7

l Distribution of the light:LED+ Optical glass lens

The curve of light distribution:Asymmetric (Bat Wing) / Rectangular Beam

Working Temperature:-40 ºC ~ 50 ºC

Working Humidity:-10 ~ 90%RH

Storage Temperature:-25 ºC ~65 ºC

Material for light :Aluminum

Case Color Available::gray ,black,white  or bule available

Lifespan for LED lighting source:> 50,000 hours

IP Rating: IP66

Size for pole diameter:50 or 60mm

Net weight: 8.5 Kgs

Gross Weight:10Kgs

Package Size(mm): 86*33*16CM /1PCS

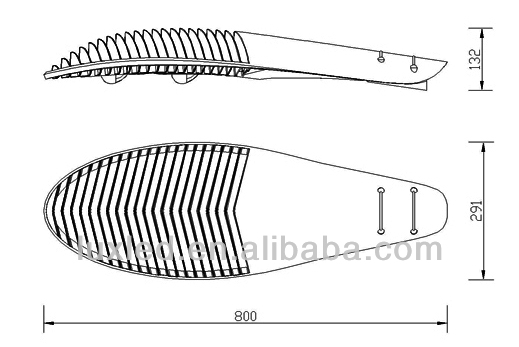

Product size:


Advantages:



1.Product Name:LED Street Light 800 Series 80-140W.



2.Adopt Super Brightness Multi-Chip Bridgelux45mil LED Lighting Source, encapsulation by ourselves, Long lifespan, Energy saving, Environment friendly, High efficiency, No strobe,

No ghosting, No UV, IR.



3.“Dolphin” model lamp housing,Integrated design of die-casting aluminum fin-type radiator, is conducive to heat dissipation.Patented Design.



4.Optical lens,pure glass materials,Patent design,special honeycomb shape.



5.Using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 °C, which is effective controlled the light degradation, the lifespan for the led light is over 50000 hours.



6.The Meanwell driver range for the input voltage is wide. Which make the led street light are available for the global.Also could use solar DC10V-28V to realize the secondary energy saving system.



7.Our LED Driver are approved CE ROHS,can be available for every where.



8.130°/140°beam angle,anti-dazzle.IP65/IP66 waterproof.



9.Lamp housing color:White/Grey/Black/Blue.



10.MOQ 100pcs,could do laser printing(customer logo/tech data).



LED street light 120w Lighting curve:







Avialable led street light:we have many different led street light to choose,welcome to visit our website:www.luxled-china.com

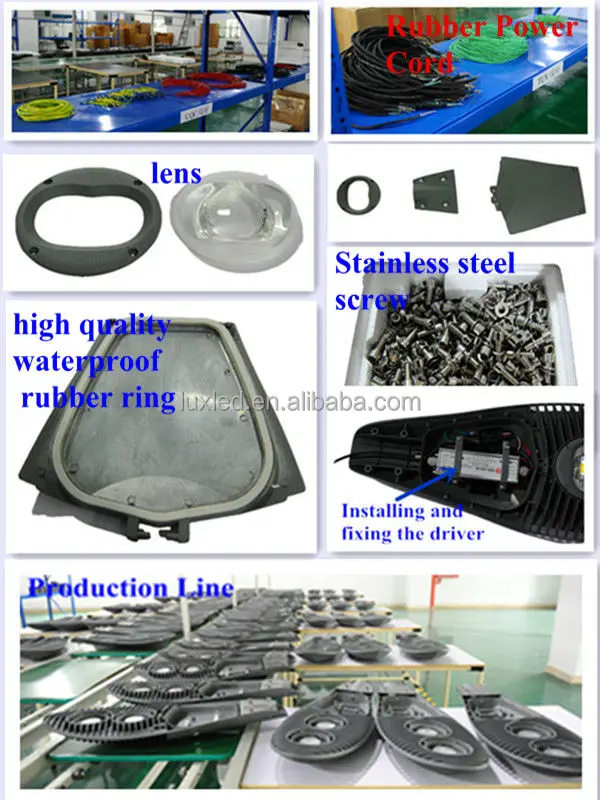

Real production and ageing picture:





Our service:

1. You inquiry related to our products or prices will be replied in 24hours

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM & ODM, any your costomized lighings we can help you to design and put into product

4. Distributoershio are offered for your unoque design and some our current models

5. Protection of you sales area, ideas of design and all your private information

Application:

1. Handling with care Do not Fall again.

2.In the product work,do not touch the outer covering radiation metal with the hand.

3.Is suitable in the urban road illumination.

4.Is suitable in the community industrial district illumination.

5.Using in illuminations and so on square park garden villa.





Delivery Time



Sample: 1-3 working days



Bulk: 7-15 working days



NO MOQ



You are welcome to ask for sample or trial order.





Payment Term





T/T, Western Union and Payapl are better. For others can be negotiated.





WHY CHOOSE US





High-performance Work Team


LUX employs approximately 200 employees, 8 senior engineers and 30 salesman. Most of the staffs in these departments have more than 5 years work experience which make sure to give best idea and product to our customers.



What we could do for you?


1. Thanks to our high-performance automatic machines. LUX provide mass production with good quality and competitive price meet your tight delivery time.
2. Long guarantee period and rapid, convenient after-sales service
3. Customer oriented design both for lamps and package within 15 days.
