Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: Bridgelux
  • Input Voltage(V): AC100-240V/DC12-24V
  • Lamp Power(W): 180
  • Lamp Luminous Flux(lm): 18000
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 75
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -30 - +60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, CE/ROHS
  • Warranty(Year): 3
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LUX
  • Model Number: LX-SL950-180W
  • Item: High Quality ce&rohs approved new 180w led street light
  • Light source: 3pcs*60w Bridgelux45mil
  • Power: 180
  • PF: 0.95
  • Driver: Meanwell
  • N.W./G.W.: 11kg/11.5kg
  • Beam angle: 145 degree
  • Package Size: 100*40*20cm/pcs

Packaging & Delivery

Packaging Details: Packing:Carton with EPE FOAM
Delivery Detail: 7-10days

High Quality ce&rohs approved new 180w led street light



  • Product Name : LED street light(150-210W)
  • Input Voltage : AC 85-265V, 277V/305V 47-63Hz DC10-28v
  • Color : CW;PW;WW
  • LED Efficiency : >100 lm/w
  • Color Rendering Index (CRI) : CW/PW: Ra≥80;WW :Ra≥75
  • Working Temperature : -40 ºC ~ 50 ºC
  • Lifespan for LED lighting source : > 50,000 hours
  • Certification : CE&RoHS&FCC&SGS&KEMA
  • Manufacturer : Shenzhen Lux lighting Co.,Ltd.
Shenzhen Lux Lighting Co.,Ltd. LX-SL800 ,80-140W LED Street Light

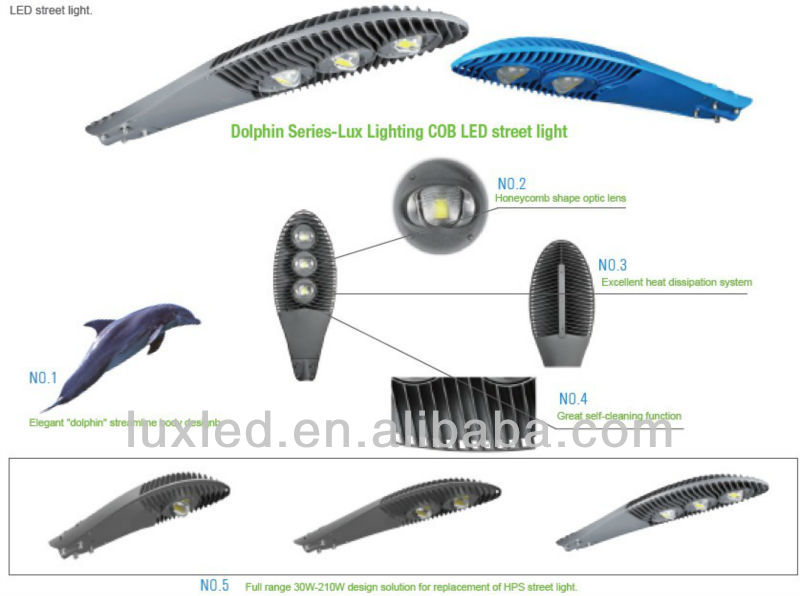

Dolphin series COB street light picture:

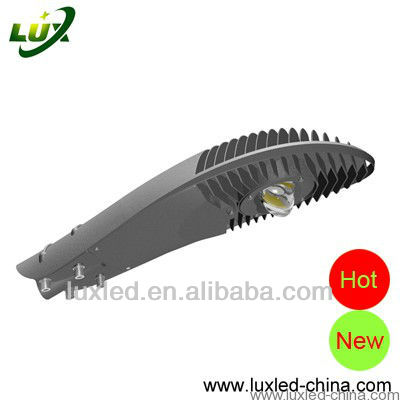

(1) 1pcs COB Chip:30-80W led street light

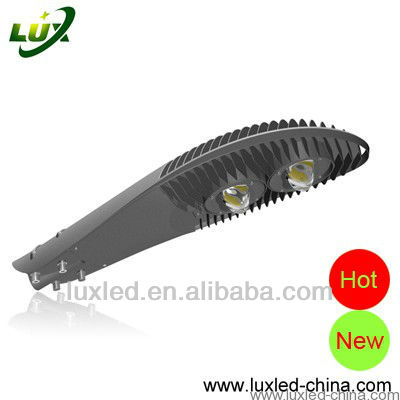

(2) 2pcs COB Chip:80-140W led street light

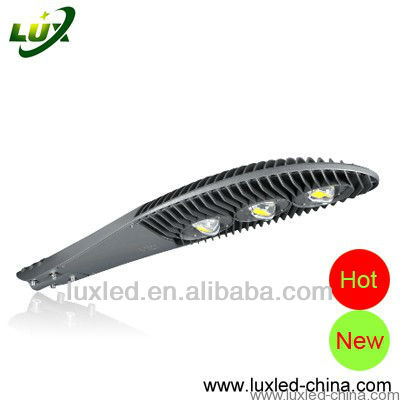

(3) 3pcs COB Chip:150-210W led street light
 Design concept :

60w/120w/150w/180w High Quality new 120w led street lights




Model No.


LED QTY(multi-chip)

Input Power


Input Voltage



Luminous Flux


3X 60 W COB





LED Work Voltage:30-36V

Related color temperature(CCT):

Cool White:6000-7000K,Pure White:4500 – 5500K,Warm White:3000 – 4000K/2700-2900K

Other available Color:red, yellow, bluegreen amber

Color Rendering Index (CRI):Ra≥70

Uniformity of illuminance : 0.7

Distribution of the light:LED+ Optical glass lens

The curve of light distribution:Asymmetric (Bat Wing) / Rectangular Beam

Working Temperature:-40 ºC ~ 50 ºC

Working Humidity:-10 ~ 90%RH

Storage Temperature:-25 ºC ~65 ºC

Material for light :Aluminum

Case Color Available::gray ,black,silver,white available

Lifespan for LED lighting source:> 50,000 hours

IP Rating: IP65

Size for pole diameter:60-65mm

Net weight: 11.8 Kgs

Gross Weight: 13.6Kgs

Package Size(mm)1010*405*220 mm/1 PCS

Product size:



1.Product Name:LED Street Light 950 Series 150-210W.


2.Adopt Super Brightness Multi-Chip Bridgelux45mil LED Lighting Source, encapsulation by ourselves, Long lifespan, Energy saving, Environment friendly, High efficiency, No strobe, No ghosting, No UV, IR.


3.“Dolphin” model lamp housing,Integrated design of die-casting aluminum fin-type radiator, is conducive to heat dissipation.Patented Design.


4.Optical lens,pure glass materials,Patent design,special honeycomb shape.


5.Using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 °C, which is effective controlled the light degradation, the lifespan for the led light is over 50000 hours.


6.The Meanwell driver range for the input voltage is wide. Which make the led street light are available for the global.Also could use solar DC10V-28V to realize the secondary energy saving system.


7.Our LED Driver are approved CE ROHS,can be available for every where.


8.130°/140°beam angle,anti-dazzle.IP65/IP66 waterproof.


9.10.Lamp housing color:White/Grey/Black/Blue.


10.MOQ 100pcs,could do laser printing(customer logo/tech data).



LED street light 150w Lighting curve:




Avialable led street light:we have many different led street light to choose,welcome to visit our website:www.luxled-china.com


Our service:

1. You inquiry related to our products or prices will be replied in 24hours

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM & ODM, any your costomized lighings we can help you to design and put into product

4. Distributoershio are offered for your unoque design and some our current models

5. Protection of you sales area, ideas of design and all your private information




1. Handling with care Do not Fall again.

2.In the product work,do not touch the outer covering radiation metal with the hand.

3.Is suitable in the urban road illumination.

4.Is suitable in the community industrial district illumination.

5.Using in illuminations and so on square park garden villa.




Delivery Time


Sample: 1-3 working days


Bulk: 7-15 working days







You are welcome to ask for sample or trial order.




Payment Term



T/T, Western Union and Payapl are better. For others can be negotiated.






High-performance Work Team

LUX employs approximately 200 employees, 8 senior engineers and 30 salesman. Most of the staffs in these departments have more than 5 years work experience which make sure to give best idea and product to our customers.


What we could do for you?

1. Thanks to our high-performance automatic machines. LUX provide mass production with good quality and competitive price meet your tight delivery time.
2. Long guarantee period and rapid, convenient after-sales service
3. Customer oriented design both for lamps and package within 15 days.
