ETL DLC 130LM/W high lumens long warranty 200W led parking lot pole light
Main parameters of ETL DLC 130LM/W high lumens long warranty 200W led parking lot pole light
100-277VAC, 50/60Hz , 200-480VAC (optional)
200 watts (250W metal halide equivalent)
JL-203C, JL-208 (field installed accessories optional)
Slip Fitter, Arm (round pole), Arm (square pole), Trunnion Mount (optional)

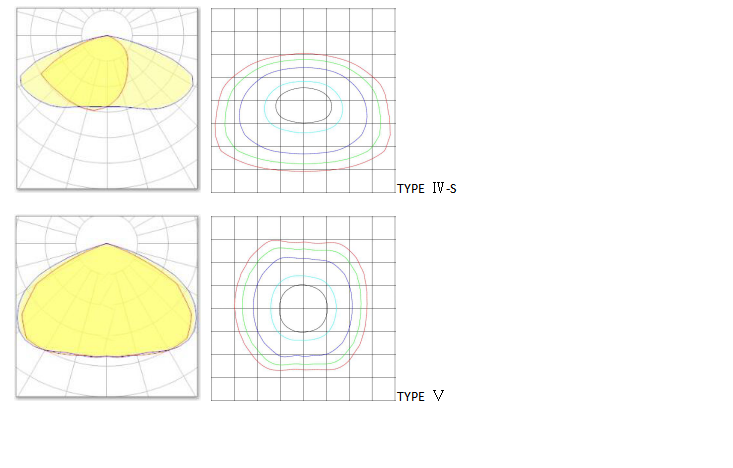

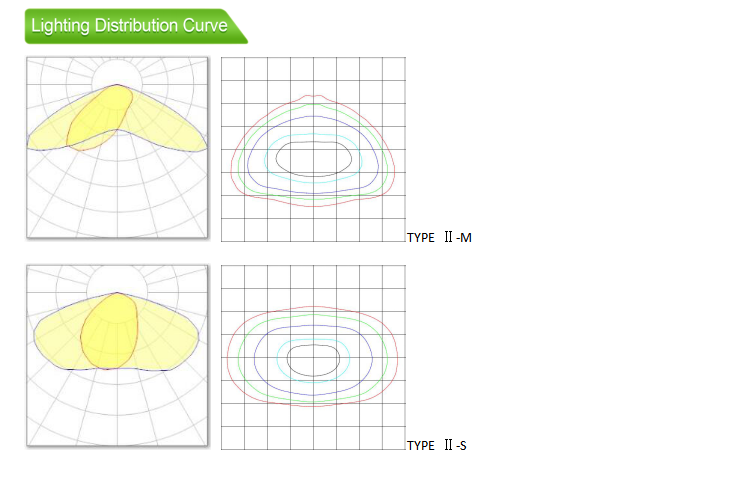

Lighting distribution curve
ETL rated for outdoor applications
Note: For Modern design ETL DLC 130LM/W high lumens long warranty 200W led parking lot pole light , the wattage from 100-300w are available,
The comparation of ETL DLC 130LM/W led shoe box light 100w led parking lot pole light
Detail of Modern design ETL DLC 130LM/W led shoe box light 100w led parking lot pole light
CONSTRUCTION & MATERIALS
One-piece die-cast aluminum housing., fully sealed to be dirt and bug proof.
One-piece silicone perimeter lens gasket and closed-cell neoprene housing gasket help to seal out moisture and contaminants.
High quality shock proof polycarbonate lens with UV inhibitors.
Integral secondary heat sink to optimize thermal transfer and maximize performance and life of LED.
Driver is mounted in direct contact with the casting for a low operating temperature and long life.
MOUNTING AND WIRING

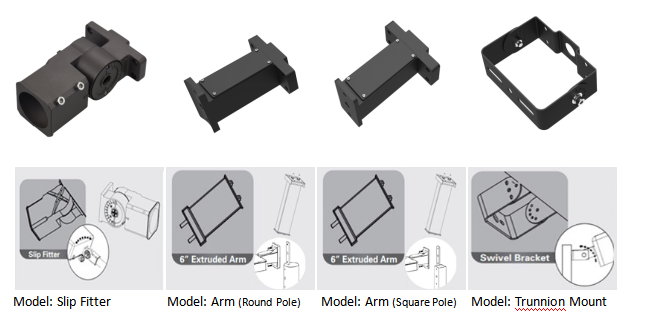

Four (4) options: Slip Fitter, Arm (round pole), Arm (square pole), Trunnion mount optional
ETL listed, IP65 rated and suitable for wet locations.
Integral high performance LED driver.
Universal input voltage 100-277VAC, 50/60Hz.
High quality super white tempered glass. Transparent, frosted optional.
High performance SMD LEDs mounted on metal core board and integral aluminum heat sink.
Color temperature: 5000K. Other color temperature available for special order, consult factory for lead time.
Available for special order, consult factory for lead time
Die cast aluminum
MOUNTING AND WIRING
Four options: Slip Fitter, Arm (round pole), Arm (square pole), Trunnion
20–85% RH, non-condensing
Suitable for damp/wet locations
Degree of Modern design ETL DLC 130LM/W led shoe box light 100w led parking lot pole light
Application of ETL DLC 130LM/W led shoe box light 100w led parking lot pole light
Freeway, highway, parking lot, public entrance, street and roadway, shoebox light fixtures, high masts, sidewalk, square, school, park, garden, factory, residential places, etc.
1. 200-480VAC available for special order.
2. Lead times will vary depending on options selected. Consult with your sales representative.
3. Optional high efficiency customization by using or light source from other brand.
