Quick Details

  • Light Source: LED
  • Item Type: Street Lights
  • LED Light Source: 3030
  • Input Voltage(V): AC85-277
  • Lamp Power(W): 200
  • Lamp Luminous Flux(lm): 26000
  • Lamp Luminous Efficiency(lm/w): 120
  • CRI (Ra>): 85
  • Color Temperature(CCT): WW/PW/CW
  • Working Temperature(℃): -45 - +50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Warranty(Year): 5
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LUX
  • Model Number: LX-PL03
  • Name: high lumens long warranty 150W 200W led parking light

Packaging & Delivery

Packaging Details Carton and inner box
Delivery Time 7-10days

ETL DLC 130LM/W Classic type high lumens warranty road led light  150W 200W led parking lot light

Main parameters  of Classic type high lumens warranty road led light  150W 200W led parking lot light

Input voltage:

100-277VAC, 50/60Hz , 200-480VAC  (optional)

Input wattage:

200 watts (250W metal halide equivalent)

Efficacy:

>130 lm/W

Lumen output:

>26000 lumens

CCT:

3000K/3500K/4000K/5000K/5700K  (optional)

PhotoCell

JL-203C, JL-208  (field installed accessories optional)

Adaptor

 Slip Fitter, Arm (round pole), Arm (square pole), Trunnion Mount  (optional)

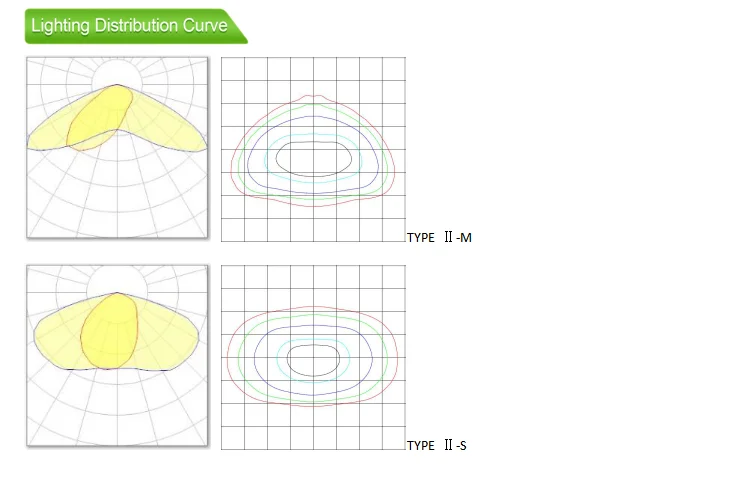

Lighting distribution curve

optional

Warranty:

5 years

Rating:

ETL rated for outdoor applications

Note: For Modern design ETL DLC 130LM/W high lumens long warranty 150W  200W  led parking light, the wattage from 100-300w are available,

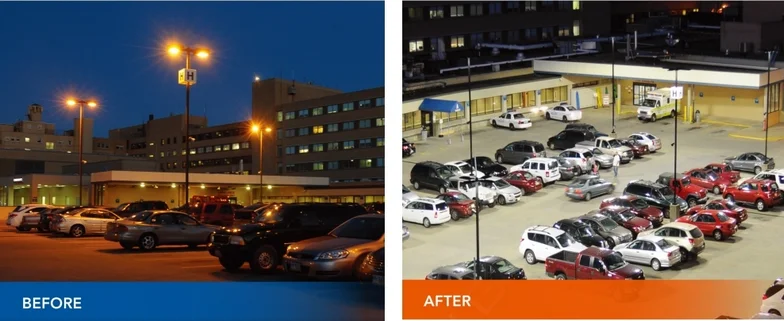

The comparation of Classic type high lumens warranty road led light  150W 200W led parking lot light



  Installation of Classic type high lumens warranty road led light  150W 200W led parking lot light



Detail of Classic type high lumens warranty road led light  150W 200W led parking lot light

CONSTRUCTION & MATERIALS

One-piece die-cast aluminum housing., fully sealed to be dirt and bug proof.

One-piece silicone perimeter lens gasket and closed-cell neoprene housing gasket help to seal out moisture and contaminants.

High quality shock proof polycarbonate lens with UV inhibitors.

Integral secondary heat sink to optimize thermal transfer and maximize performance and life of LED.

Driver is mounted in direct contact with the casting for a low operating temperature and long life.

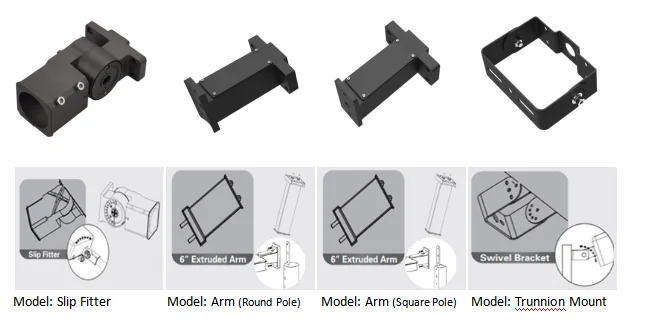

MOUNTING AND WIRING

Four (4) options:  Slip Fitter, Arm (round pole), Arm (square pole), Trunnion mount optional

ENVIRONMENTAL SYSTEM

ETL listed, IP65 rated and suitable for wet locations.

ELECTRICAL SYSTEM

Integral high performance LED driver.

Universal input voltage 100-277VAC, 50/60Hz.

OPTICAL SYSTEM

High quality super white tempered glass. Transparent, frosted optional.

High performance SMD LEDs mounted on metal core board and integral aluminum heat sink.

Color temperature: 5000K. Other color temperature available for special order, consult factory for lead time.

LIGHTING CONTROL

Available for special order, consult factory for lead time

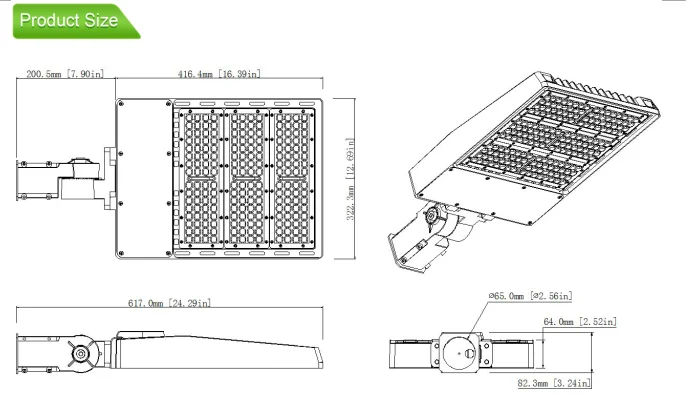

PHYSICAL SPECIFICATION

Length

24.29” (617.0mm)

Width

12.69” (322.3mm)

Height

3.24” (82.3mm)

Net weight

17.97lb (8.15kg)

Housing material

Die cast aluminum

Finish

Bronze

MOUNTING AND WIRING

Mounting

Four options:  Slip Fitter, Arm (round pole), Arm (square pole), Trunnion

ENVIRONMENTAL SPECIFICATION

Operating temp.

-30–130°F (-34–54°C)

Operating humidity

20–85% RH, non-condensing

Storage temp.

-40–140°F (-40–60°C)

Ingress protection

Suitable for damp/wet locations



Degree of Classic type high lumens warranty road led light  150W 200W led parking lot light

Application of Classic type high lumens warranty road led light  150W 200W led parking lot light

Freeway, highway, parking lot, public entrance, street and roadway, shoebox light fixtures, high masts, sidewalk, square, school, park, garden, factory, residential places, etc.

Note

1. 200-480VAC available for special order.

2. Lead times will vary depending on options selected. Consult with your sales representative.

3. Optional high efficiency customization by using  or light source from other brand.

Packing size of Classic type high lumens warranty road led light  150W 200W led parking lot light

MODEL NO.

PIECES/CARTON

NET WEIGHT

GROSS WEIGHT

PACKAGE SIZE

LX-PL03-200W

1 pcs

17.97lb (8.15kg)

20.83lb (9.45kg)

670x390x195mm
