New design high power aluminum led streetlight 30w 250v

FOB Reference Price:Get Latest Price
US $25-28 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
500 Piece/Pieces per Week
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Street Lights
LED Light Source:
SMD3030
Input Voltage(V):
AC85-277
Lamp Power(W):
30
Lamp Luminous Flux(lm):
3600
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra>):
85
Color Temperature(CCT):
WW/PW/CW
Working Temperature(℃):
-45 - +50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
Warranty(Year):
5
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LUX
Model Number:
LX-SL77D
Name:
New design high power aluminum led streetlight 30w 250v
Packaging & Delivery
Packaging Details
Carton and inner box
Delivery Time
7-10days

New design high power aluminum led streetlight 30w 250v



Main parameters



Model No.

LX-SL36D

Equivalent

100W High Pressure Sodium Lamp

LED Light Source48

36pcs

LED Luminous Efficiency

>120-130 lm/w

Lamp Total Power

30W

Power Efficiency

>95%

LED Luminous Efficacy

>120 lm/w

Lamp Rated Luminous Flux

>108000 lm

Lamp Rated Luminous Efficiency

>125 lm/W

Color Rendering Index(CRI)

Ra>85

Color Temperature

Cool white: 5700-8000K

Pure white: 4500-5500K

Warm white: 2700-3500K

Beam Angle

150x70°

Input Voltage

 AC85-305/DC12/24V

Frequency Range

47-63Hz

Power Factor(PF)

>0.95

Total Harmonic Distortion(THD)

< 15%

Storage Temperature

-40--+80

Working Environment

-40--+50 ; 10%-95%RH

Junction Temperature(Tj)

60 ± 10%(ta=25)

Light Body and Lampshade Material

Aluminum Alloy

Working Lifetime

> 50,000hrs

IP Rating

IP65



Note: For this model series street light, the wattage from 30-150w are available,





The comparation:

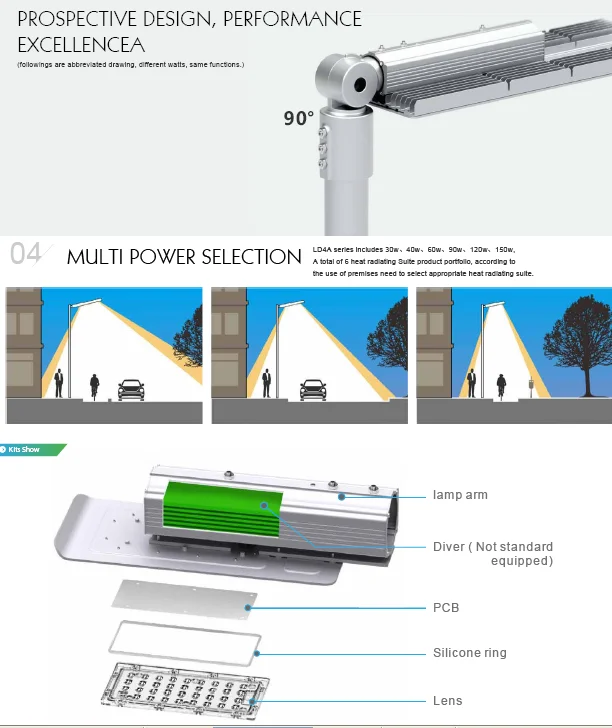

Detail of New design high power aluminum led streetlight 30w 250v

1. High grade components, such as LED
2. LED Chip: High brightness
3. LED Driver: External Meanwell driver
4. Warm and cold color temperature are available
5. Quick and easy installation to minimize retrofit costs.

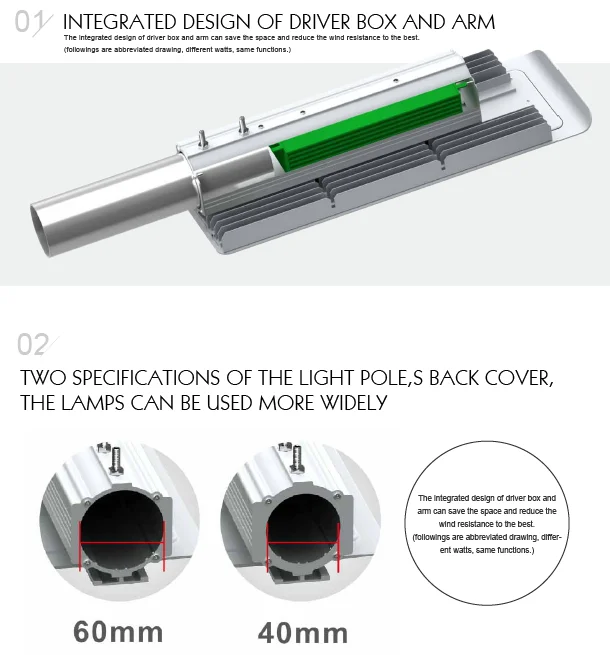

6. Patented heat dissipation technology for radiator;
7. Aluminum 6063 for resistance to corrosion, seawater, oil and lubricant etc;
8. Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
9.Closed corrosion-proof silicone ring for dustproof and waterproof
10.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
11.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
12.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
13.Energy saving: Replace 160-200w traditional lamps, saving more than 80%
14.Eco-friendly:  No lead, mercury, UV interference
15.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
16.Certificate: CE,RoHS,SAA,PSE,IP65
17.Warranty: 5 years



New design high power aluminum led streetlight 30w 250v



 Notes of   New design high power aluminum led streetlight 30w 250v

1. When open the package, please check whether the inside is including product, accessory, label, certificate quality. And please assure that the light is perfect without any damage.

2. The wires of LED Street Light is three-core, the standard size of the wire is 3*1mm²or3*1.5mm² and the outer diameter isΦ7~12mm, brown wire is live line, blue wire is null line, yellow& green is ground line.

3. LED Street Light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can’t be repaired.

4. when the electrical continuity is connected, the lead wire should be in electric insulating

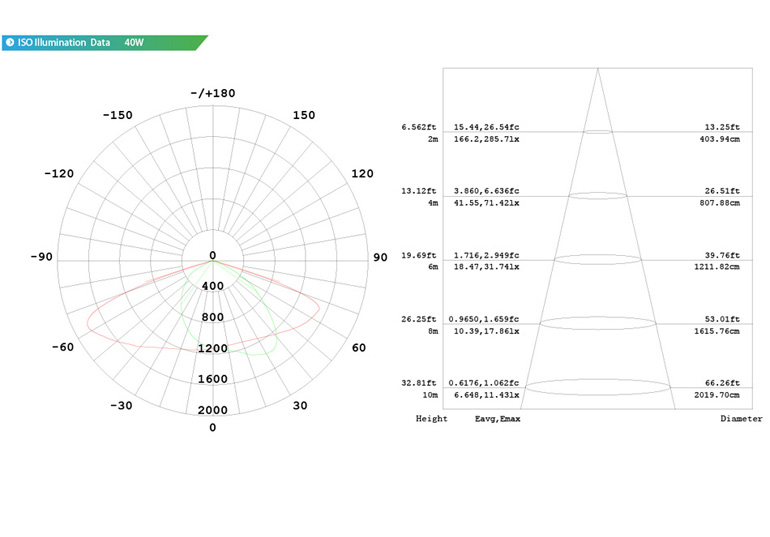

LUX  Output of New design high power aluminum led streetlight 30w 250v

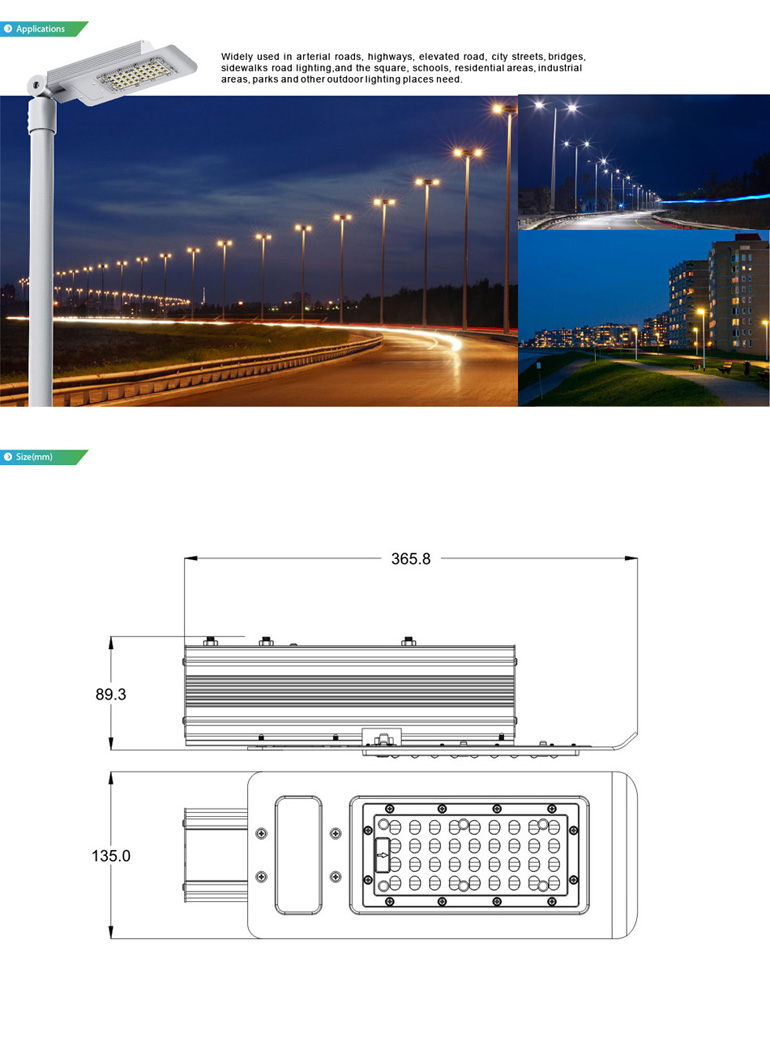

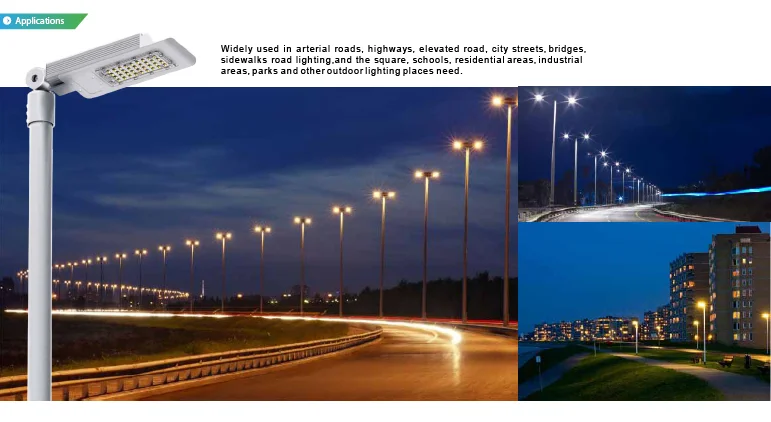

Application of New design high power aluminum led streetlight 30w 250v

Road lighting, community lighting, park lot lighting, dock lighting

Main Road, Sidewalk, Square, School, Park, Garden, Factory, Residential Places, Villa and so on.

Production of  New design high power   aluminum  led street light fittings factory

Packing size

Net Weight7.3kgs
Gross Weight8.8kgs
Package Size(cm)84x39*19cm  /1 pcs
