Gross Weight: 29.5kgs
Package Size: 700*630*215mm
10 days after payment
high lumen output 240v 277V dimmable 1000w brightest flood light
Main parameters of brightest flood light
2000W High Pressure Sodium Lamp
LED Light Source
LED Luminous Efficiency
Lamp Total Power
LED Luminous Flux
Lamp Rated Luminous Flux
Lamp Rated Luminous Efficiency
Color Rendering Index(CRI)
Cool white: 5700-8000K
Pure white: 4500-5500K
Warm white: 2700-3500K
30, 60, 90, 120
AC90-305V / MEAN WELL Driver
Total Harmonic Distortion(THD)
-40℃--+50℃ ; 10%-95%RH
60℃ ± 10%(ta=25℃)
Light Body and Lampshade Material
Note: For this series of linear lighting, the wattage from 50 to 480w are available
Main features of brightest flood light
Lux Lighting modular LED flood lights are designed to replace traditional HID in a variety of applications, especially for warehouse with high racks applications. The luminious lighting pattern is rectangular, which is complied with the shape of aisle to reduce luminous wasted on the top and upper of the racks. It adopts the most advanced chips as light source and UL listed Meanwell driver as power supply. With innovative optics and thermally efficient design, the fixture efficacy is 120lm/W. With ideal beam angle, Lux Lighting LED linear lighting can meet most of the project requirement. Combined with dimmable versions(PWM, Dali, 1-10V). Lux Lighting will help you save even 80% energy. Lux Lighting LED Linear Light is now available with 50W-480w suitable installed at 8-16m height. Multiple installations optional, suitable for various applications. Energy-efficient, Eco-friendly, Low maintenance for industrial applications. Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years. Certificate: CE,RoHS,SAA,PSE,IP65 Warranty: 5 years

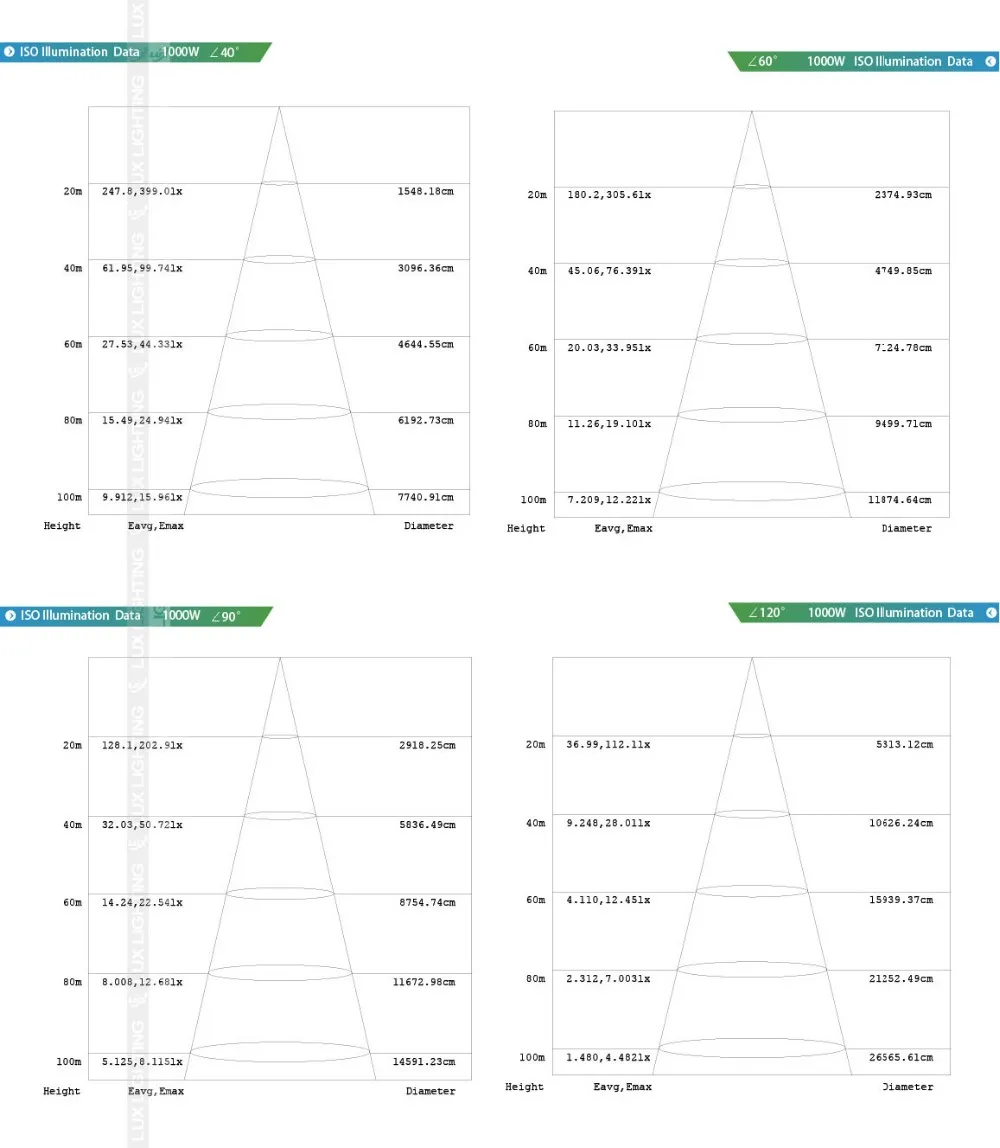

Lux output of brightest flood light
Picture of brightest flood light
Introduction of the parts in brightest flood light

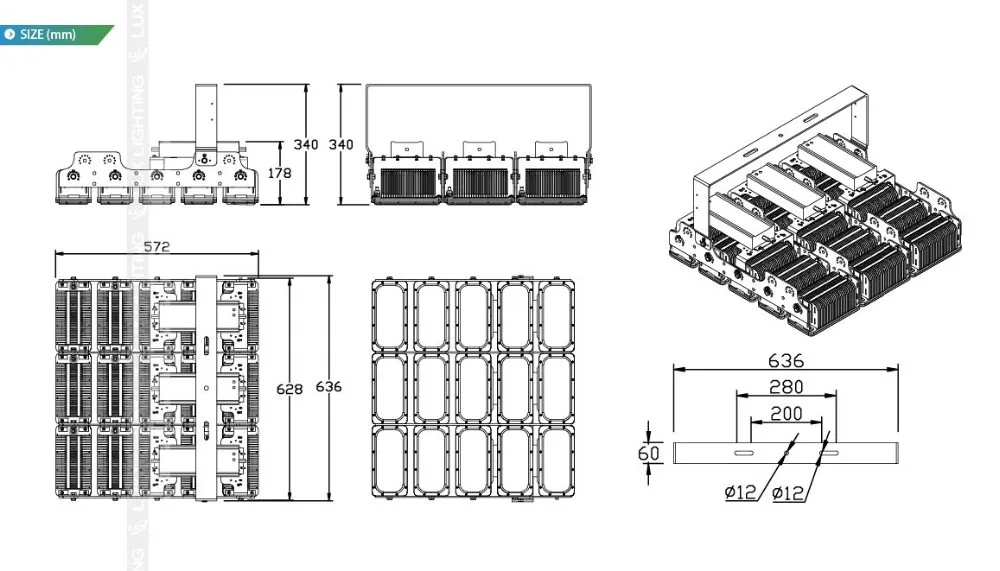

Size of brightest flood light
Application of brightest flood light
Our flood light are widely applied to building, factory, storage room, parking lot, exhibition hall, domestic block, gymnasium, gas station, square, advertise, lawn, super market wharf and so on.
We may be able to accommodate your special projects, so please don’t hesitate to ask about additional options.
Packaging Information of brightest flood light
When you install our brightest flood light, pls pay attention to below information.
1). In order to make sure the 700w led linear lighting work safety and stability, the ground line should be connected the earth.
2) When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on.
3) Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness.
4) When finishing connect the wires, please use the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.
LUX is proud of its brightest flood light series. They are new series of energy saving products that utilize high power LEDs as effective lighting source to traditional illumination. Based on the classic modular design-our first generation LED Flood Light,. Although LEDs were deducted, but the light efficiency is much higher and much more effective based on the dual lens design, this kind of design has really achieved a high luminous efficiency, low power consumption and excellent heat dissipation characteristics.
Full waterproof design (IP65) - white tempered glass, light transmission rate can be more than 93%- the power can contact cooling body directly – light in weight, which make a breakthrough in the aspects of heavy in weight. What’s more, the production is easy to assemble and produce. The shape and structure of the production gain the protection of patents.
